Features

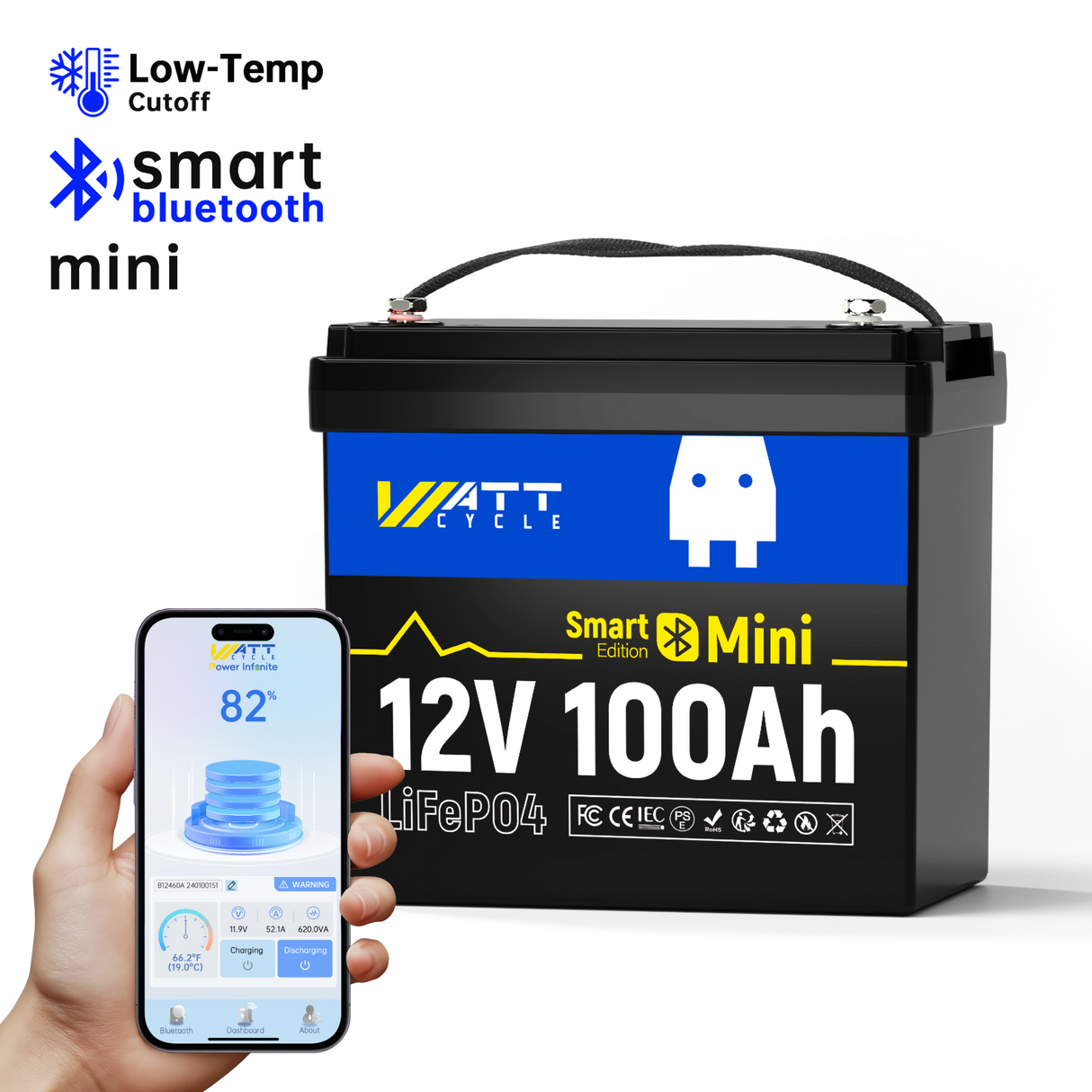

- Bluetooth Smart Control: This battery can be controlled by the app, which is installed on Android 4.3 or above, supports Bluetooth4.0 devices, and requires GPS usage permissions for Bluetooth functionality.
- Real-time Status Monitor: This allows you to clearly understand the health status of lithium batteries (the voltage of each battery seriescharging and discharging current, alarm prompts, protection status, etc. ) and ensure the safe use.
- High Performance: The battery has a capacity of 100Ah and a standard voltage of 12.8V. It features A+ grade cells and can endure up to 20,000 cycles. It has obtained SDS/UN38.3/FCC/CE/ROHS certifications, ensuring its quality and safety.

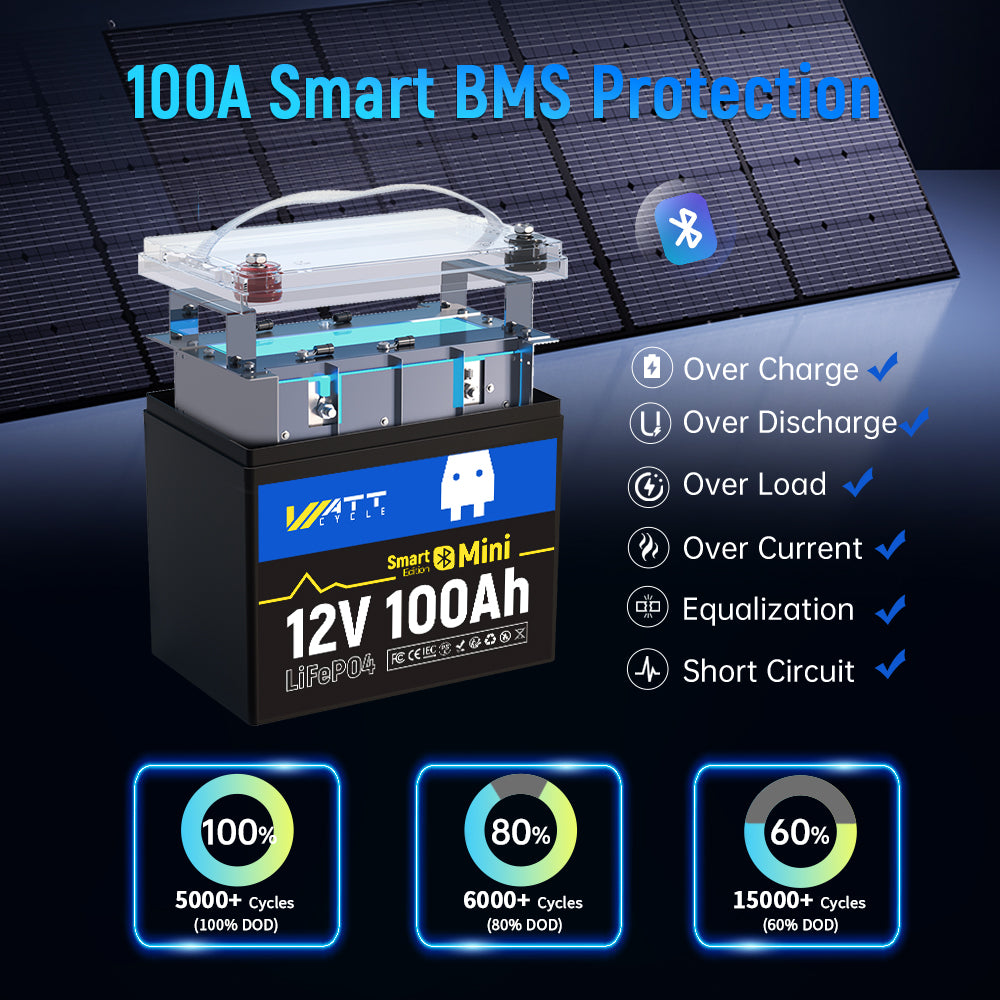

- Built-in BMS Protection: The battery incorporates a built-in 100A BMS protection plate that automatically disconnects the battery if the discharge current exceeds 300±50A. This intelligent design ensures optimal safety for the battery.
- Mini Size, Maximum Power: WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery offers an 11% weight reduction and a 39% volume reduction compared to the Group 24 regular style, while its energy density has increased to an impressive 195wh/L!
- Low Temperature Protection: Designed to withstand extreme temperatures, our battery can operate in conditions as low as -4℉ (-20℃) and as high as 158℉ (70℃). It adapts seamlessly to various climate environments.
-

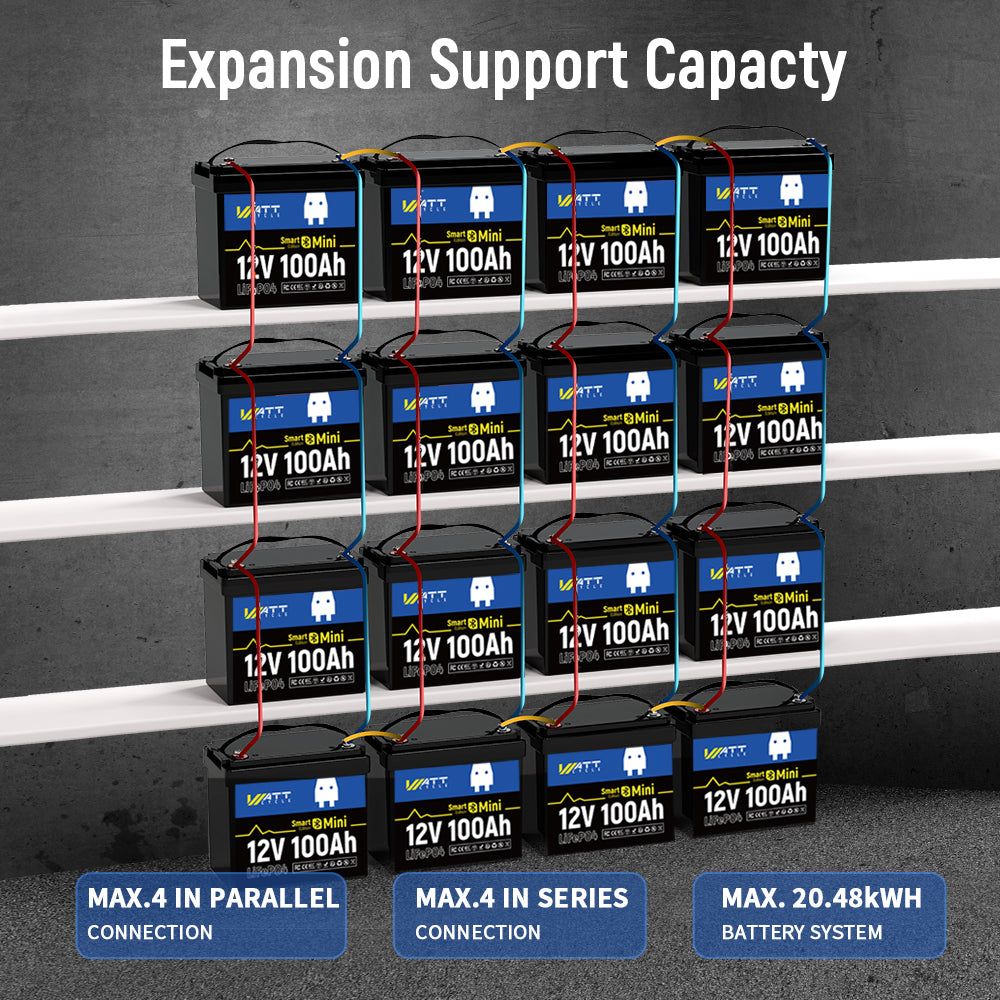

Series or Parallel Connection: You can easily connect up to 4 batteries in series or 4 battery packs in parallel, providing a remarkable capacity of up to 20.48kWh.
Perfect Fit: Our 100Ah LiFePO4 battery is thoughtfully designed to seamlessly fit the Group-24 battery box, eliminating the need for purchasing a larger box.
Tech Specs
| Dimensions | 9.01″ (L) x 5.14″ (W) x 8.18″ (H) (Group 24) |
| Weight | 23.15 lbs (10.5kg) |
| Waterproof Rating | IP67 |
| Warranty | 5 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
| Cell | Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 100Ah |
| Energy | 1280Wh |
| Cycle Life | 4,000 cycles at 100% DOD, 15,000 cycles at 60% DOD, 20,000 cycles at 40% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion (Parallel & Series) | 4S4P |
| Certifications | SDS/UN38.3/FCC/CE/ROHS/UL |
| Internal Resistance | ≤40mΩ |
| BMS | 100A |
| Max. Continuous Output Power | 1280W |
| Max. Continuous Charge Current | 100A |
| Max. Continuous Discharge Current | 100A |
| Max. Discharge Current 5 Seconds | 300±50A (3-5 Seconds) |
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC/CV |
| Recommend Charge Current | 20A (0.2C) |
| Charge Temperature | 0℃ to 50℃ / 32℉ to 122℉ |
| Discharge Temperature： | -20℃ to 70℃ / -4℉ to 158℉ |
| Storage Temperature | -10℃ to 50℃ / 14℉ to 122℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
Download
Reviews
Frequently asked questions
Can’t find what you’re looking for? Contact us at: service@wattcycle.com
Q1: Would this battery be good for trolling motors?
A1:
WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery is recommended for trolling motors with 30-70lb thrust. Get expert help for your trolling motor questions! Contact us directly at service@wattcycle.com
Q2: Can I use WattCycle LiFePO4 batteries as starting batteries?
A2:
NO, WattCycle LiFePO4 batteries are designed for deep cycle energy storage, not for starting devices. For optimal performance and battery life, please use a dedicated starting battery.
Q3: What can l monitor through the app?
This application is independently developed and designed by ShenzhenWattcycle Power Co., Ltd.lt specializes in monitoring lithium batteries, provid.ing real-time status readings such as the voltage of each battery seriescharging and discharging current, alarm prompts, protection status, etc. Thisallows users to clearly understand the health status of lithium batteries andensure their safe use.
Q4: How to charge WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery?
A4:
Charging Your WattCycle LiFePO4 Battery: 3 Easy Options
1. Solar Power:
Harness the sun's energy! With effective sunshine for 4.5 hours a day, a 300W solar panel system can fully charge your battery in a single day.
Solar panel flexibility: Larger solar panels (greater than 300W) can also charge your battery, but charging times may vary depending on sunlight intensity and duration.
2. Generator/Alternator:
Compatible power source is key: Ensure your generator or alternator provides a DC output. In this case, a DC-to-DC charger is needed to connect it to the battery.
AC output option: If your generator/alternator uses AC output, consult our recommendations for a suitable battery charger to connect it to your battery.
Charging recommendations:
Recommended Charging Voltage: 14.6V ± 0.2V
Recommended Charging Current:
20A (0.2C): Charges the battery to 100% capacity in approximately 5 hours.
50A (0.5C): Charges the battery to around 97% capacity in approximately 2 hours (faster charging, slightly lower capacity).
3. LiFePO4 Dedicated Chargers (for 12V Batteries):
Recommended charger: We recommend using a 14.6V battery charger specifically designed for LiFePO4 batteries.
Charging recommendations:
Recommended Charging Voltage: 14.6V ± 0.2V
Recommended Charging Current:
20A (0.2C): Charges the battery to 100% capacity in approximately 5 hours.
50A (0.5C): Charges the battery to around 97% capacity in approximately 2 hours (faster charging, slightly lower capacity).
Overall, WattCycle LiFePO4 batteries offer you the flexibility to choose the charging method that best suits your needs.
Q5: How long to charge WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery?
A6:
We recommend using a 14.6V battery charger specifically designed for this battery.
Charging recommendations:
Recommended Charging Voltage: 14.6V ± 0.2V
Recommended Charging Current:
20A (0.2C): Charges the battery to 100% capacity in approximately 5 hours.
Q6: Can I safely charge my WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery in cold weather (below freezing temperatures)?
A7:
Your WattCycle 12V 100Ah LiFePO4 battery has a recommended charging temperature range of 32°F to 122°F (0°C to 50°C).
Built-in Protection: For your safety and to optimize battery life, this battery features low-temperature charging protection. This function automatically cuts off charging when the temperature falls below 0°C (32°F).
Additional Tips: While the battery can be charged within this range, colder temperatures may slow down the charging process.
Whenever possible, it's recommended to charge your battery within the ideal temperature range for optimal performance and battery health.
Q7: What is the maximum number of WattCycle 12V 100Ah MINI Bluetooth LiFePO4 Battery connected in series or parallel?
A8:
Expand your power options! You can connect up to four (4) WattCycle 12V 100Ah lithium batteries in series or parallel configurations (denoted as 4S or 4P). This allows you to increase the voltage (series) or capacity (parallel) of your battery system to meet your specific needs.
For safe and optimal performance, please follow these connection guidelines:
Brand: Only connect WattCycle brand batteries (ensure compatibility).
Type: All batteries must be lithium type.
Voltage: All batteries must have the same voltage (12V in this case).
Capacity: All batteries must have the same capacity (100Ah).
BMS: Ensure all batteries have the same Battery Management System (BMS).
Purchase Date: Ideally, connect batteries purchased within 3-6 months of each other (for similar performance characteristics).
Not following these guidelines could damage your batteries.
We recommend consulting a qualified professional for assistance with battery connection.
Q8: What is the maximum output energy I can get?
A9:
20.80kWh.
With 4S4P, this allows you to quadruple the voltage (series) and capacity (parallel) of your battery system for maximum output energy.
Then the maximum output energy you get is equal to 20.80kWh. (12.8V*4*100Ah*4=20.80kWh)
Q9: What is the DOD?
A10:
DOD stands for "the depth of deep discharge" and refers to the percentage of a battery's total capacity used during each charge cycle.
In the case of lithium batteries, it is generally recommended to keep the depth of discharge (DOD) between 20% and 80% to extend the life of the battery.
As for the WattCycle 12V 100Ah, you can get 4,000 cycles at 100% DOD, 15,000 cycles at 60% DOD and 20,000 cycles at 40% DOD.
