Description
Features

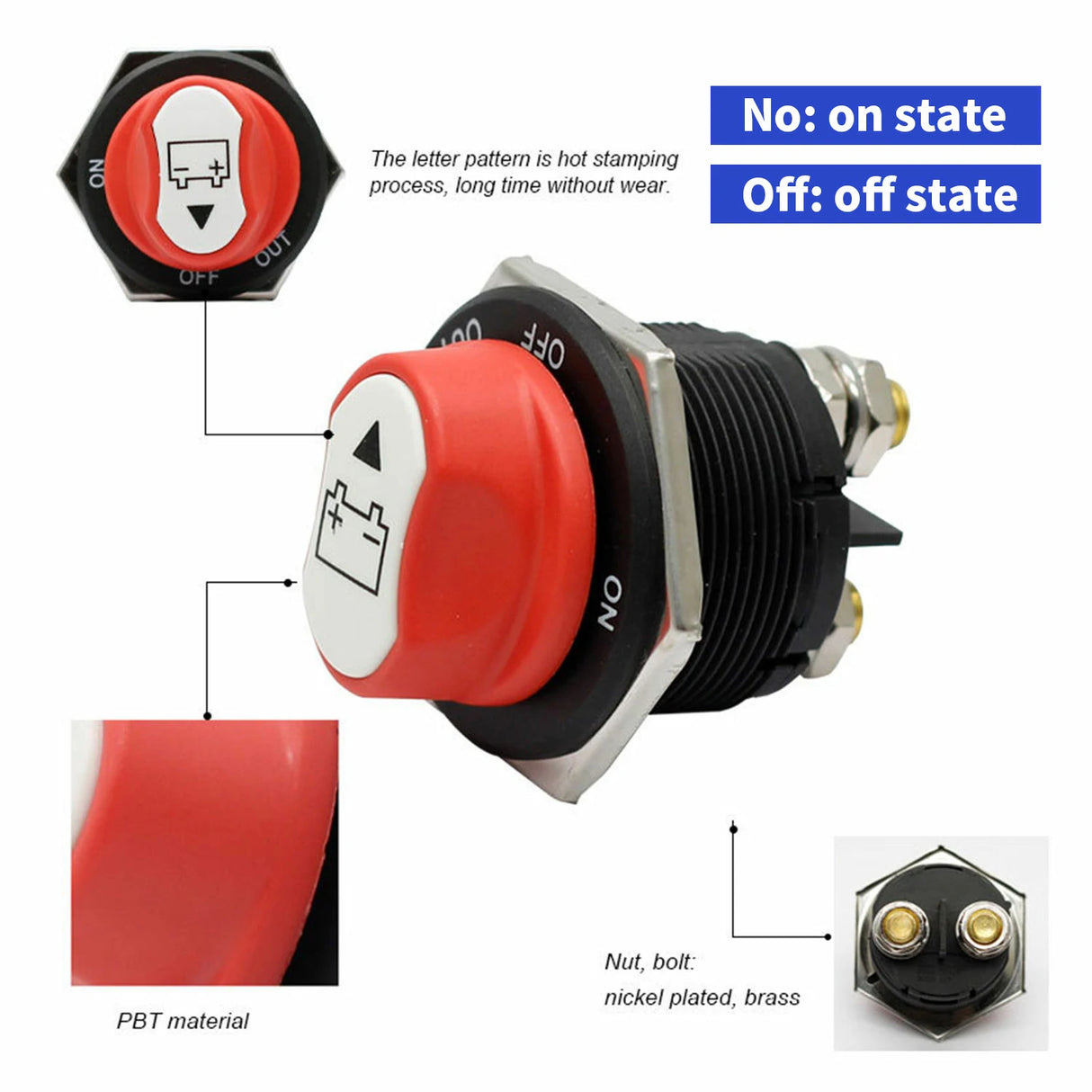

- ABS Insulated Material: The material we use is durable and ensures safety during use. The back cover prevents the circuit from short-circuiting, and the top is designed with a waterproof cover for better protection of the battery wiring.

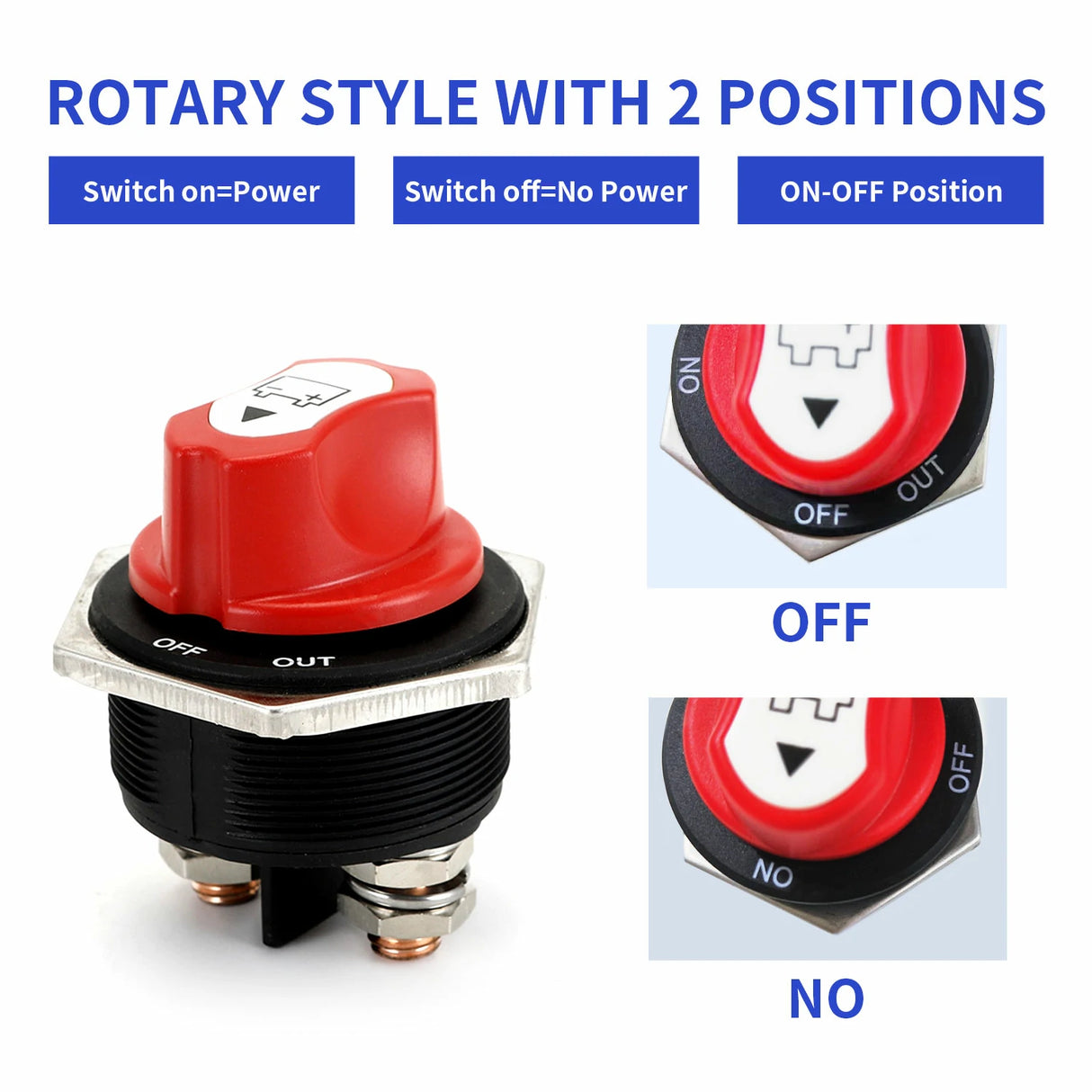

- Easy Operation: Turning the switch off when the vehicle or boat is not in use eliminates any power drain on the battery. The on/off position of the marine battery switch is clearly labelled in color.
- Switch open = power to closed circuit (green)
- Switch closed = no power to cut circuit (red)

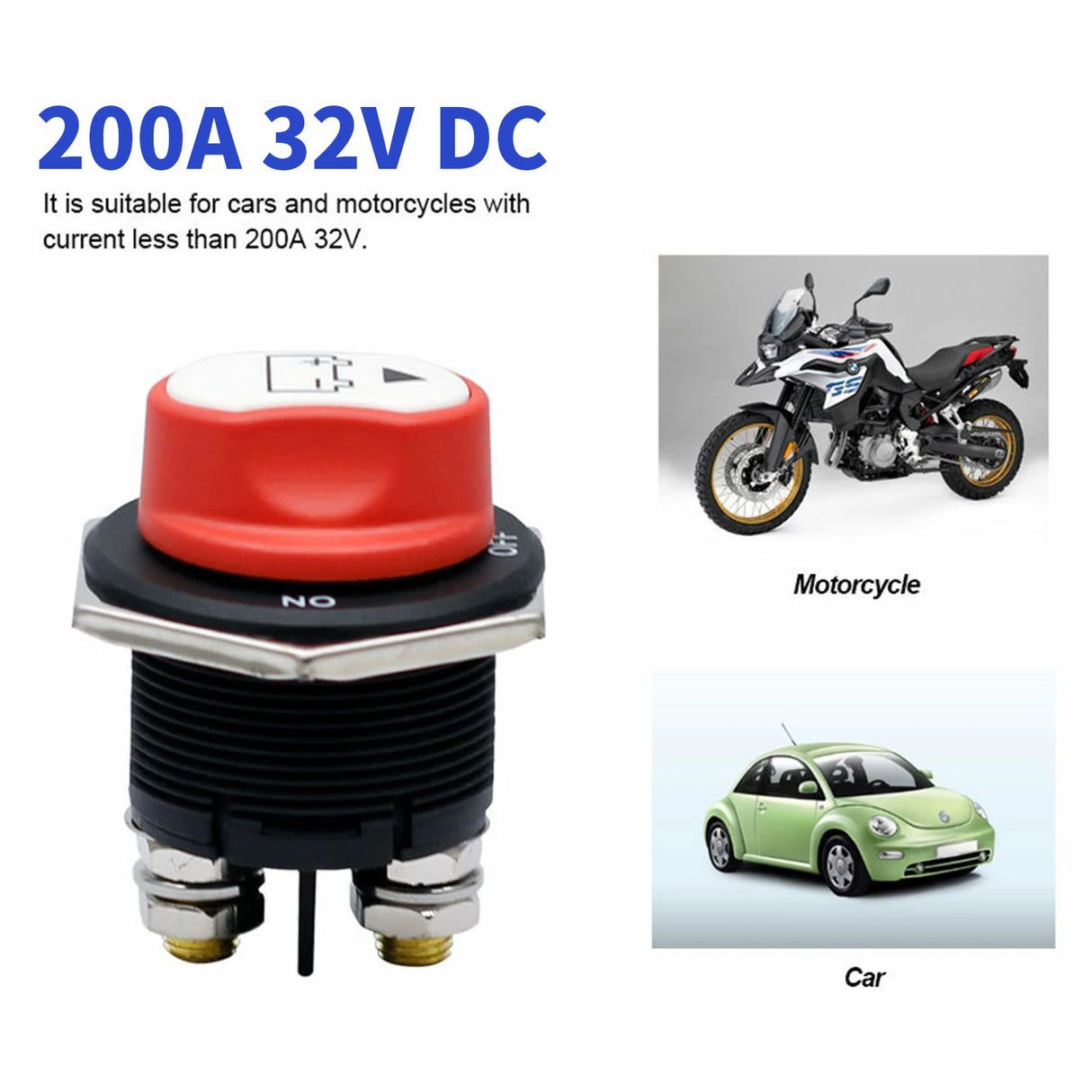

- Compatible with a range of battery system: It is suitable for 12-48V voltages to isolate and protect electrical systems, with a DC 12V continuous current of 275 A. The 12V battery switch can be used on its own or locked together with other switches to minimize battery loss and effectively prevent leakage.

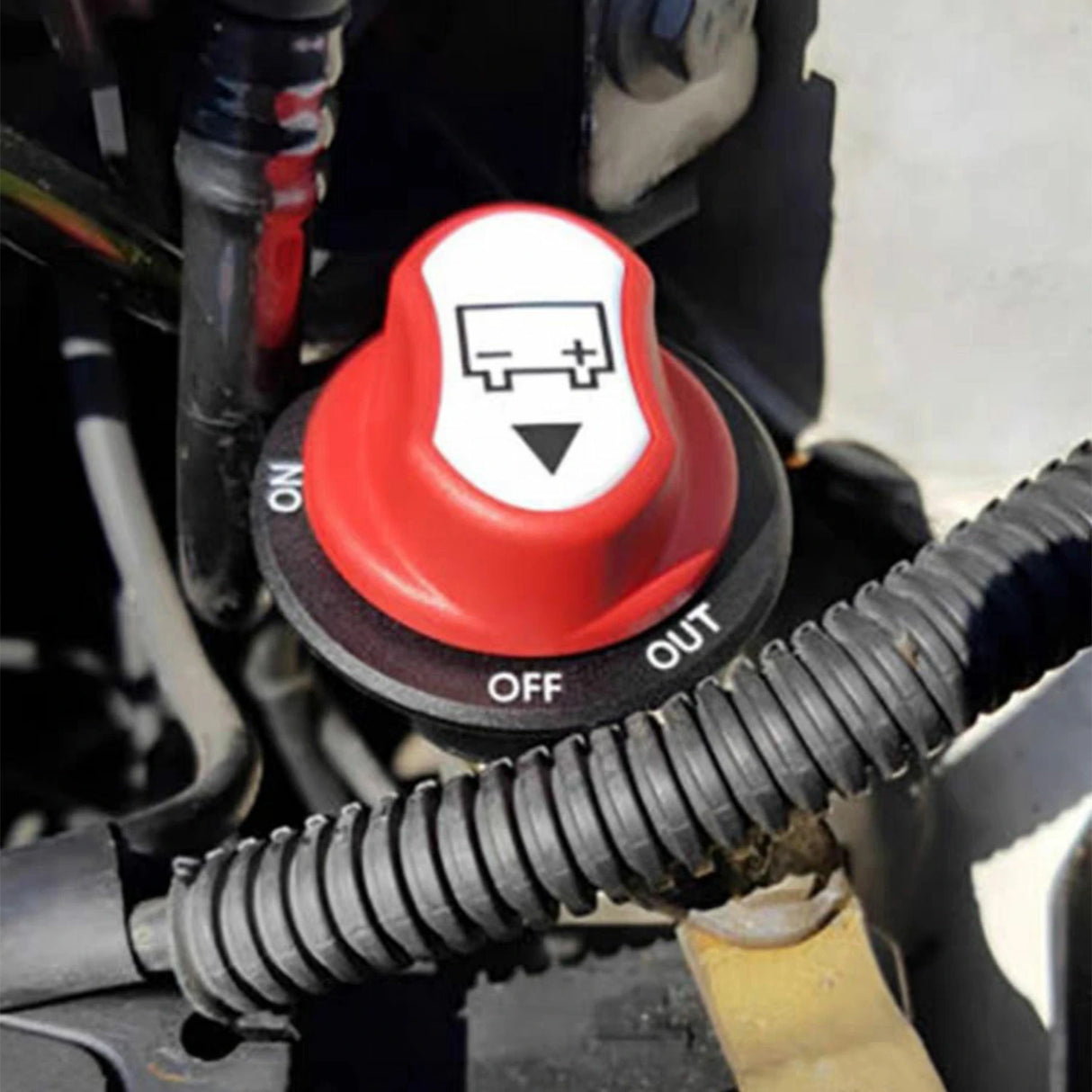

- WIDE RANGE OF APPLICATIONS: For RVs, ATVs, cars, boats, campers, campervans, travel trailers, trucks, UTVs, and any other scenario where the battery needs to be turned off.
Tech Specs
GENERAL
| Brand | Wattcycle |
| Model | SW200AB |

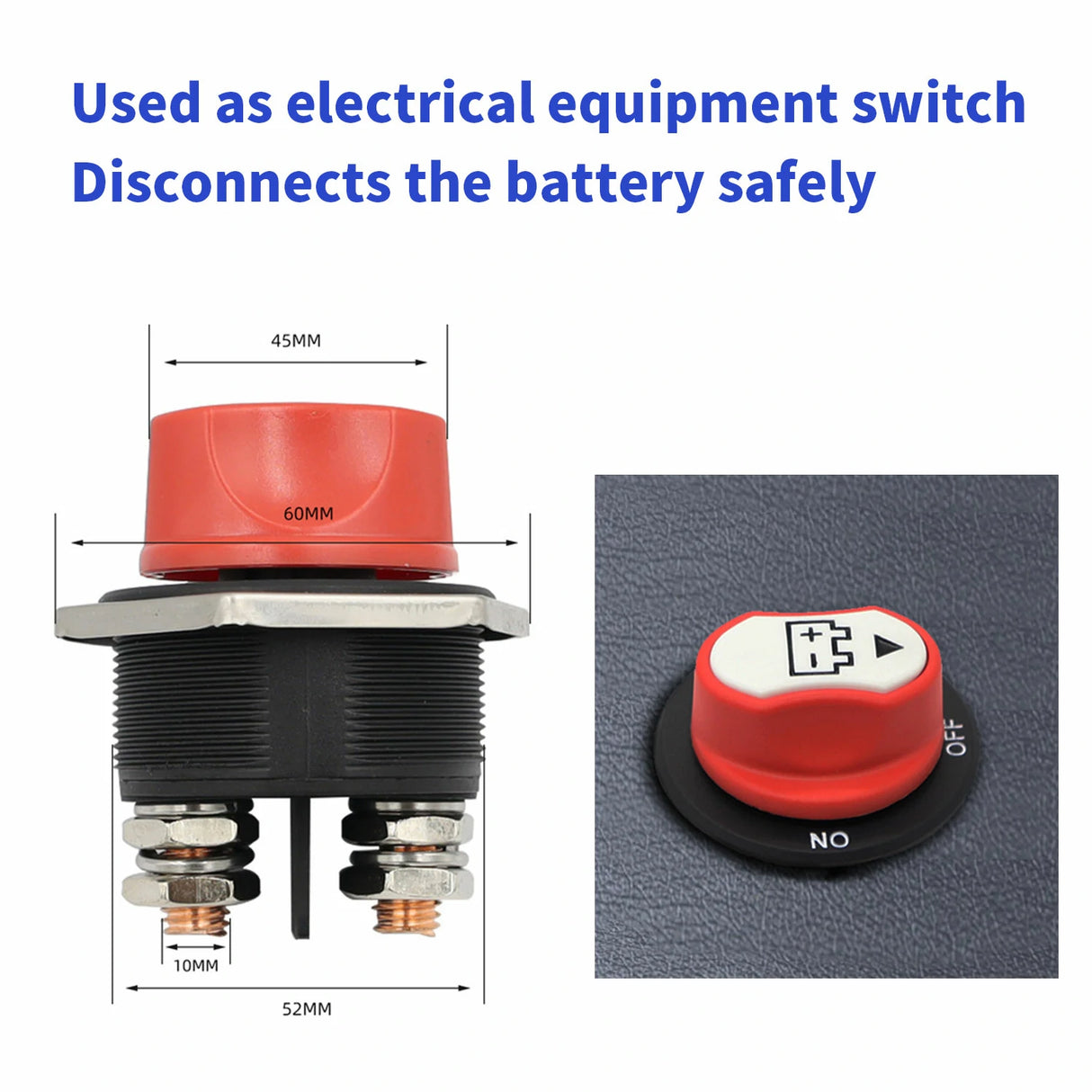

| Product Size | 2.16(L) x 1.81(W) x 2.55(H) Inches |
| Net Weight | 0.22lbs(0.1kg) |
SPECIFICATION
| Operation Mode | ON-OFF |
| Current Rating | 200 Amps |
| Operating Voltage | 12 Volts |
| Contact Type | Normally Closed |
| Connector Type | Clamp |
| Terminal | Spade |
| Circuit Type | 1-way |
| Contact Material | Metal |
