【🚀Limited Stock】WattCycle 12V 200Ah LiFePO4 Battery
- Compact: 21.0 x 8.2x 8.5 Inches | 45.20 lbs

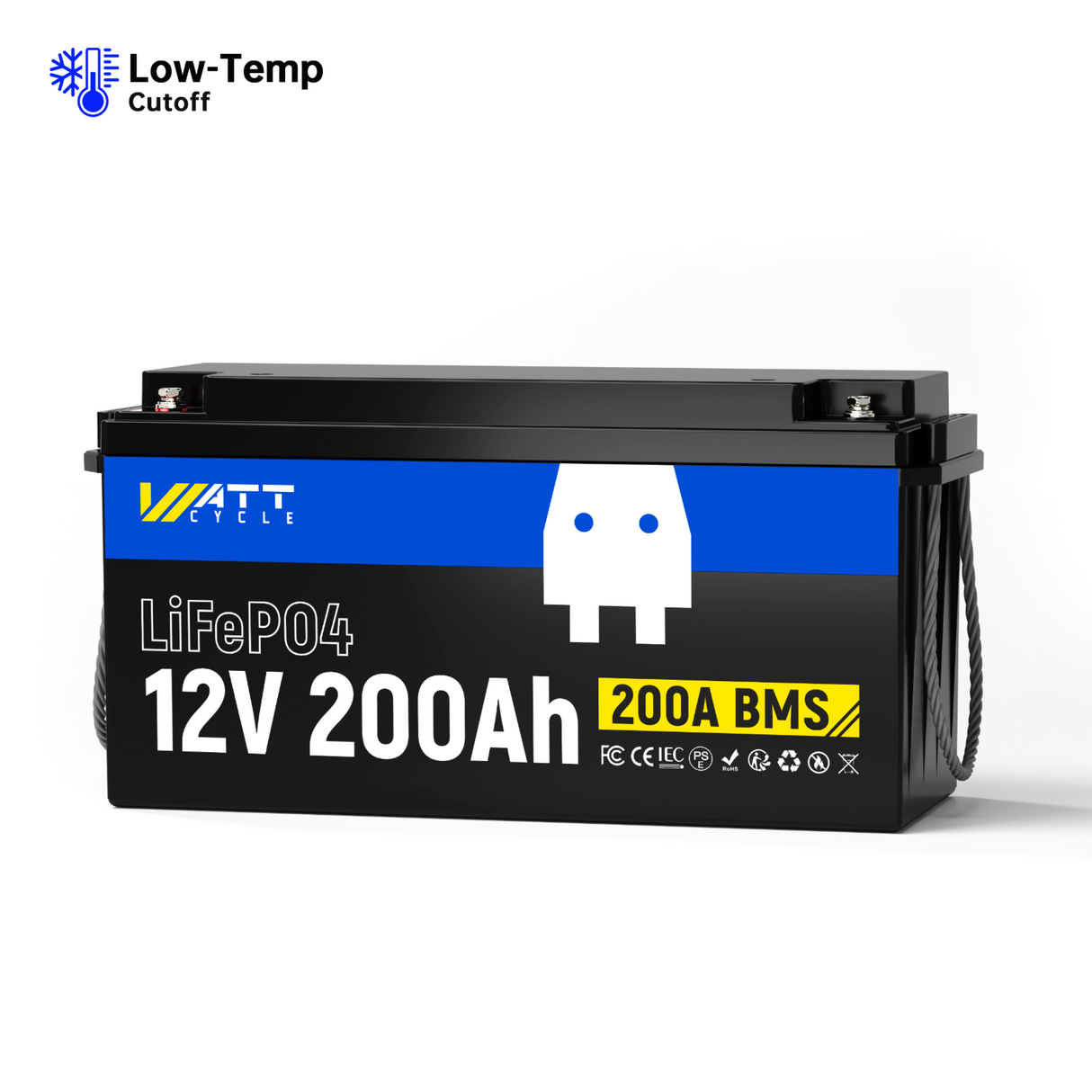

- Safe: Low-temperature cut-off protection
- Premium: EVE grade A+ LiFePO4 cells
- Durable: 5,000-15,000 deep discharge cycles
- Reliable: Built-in 200A BMS | 2560W | 2560Wh

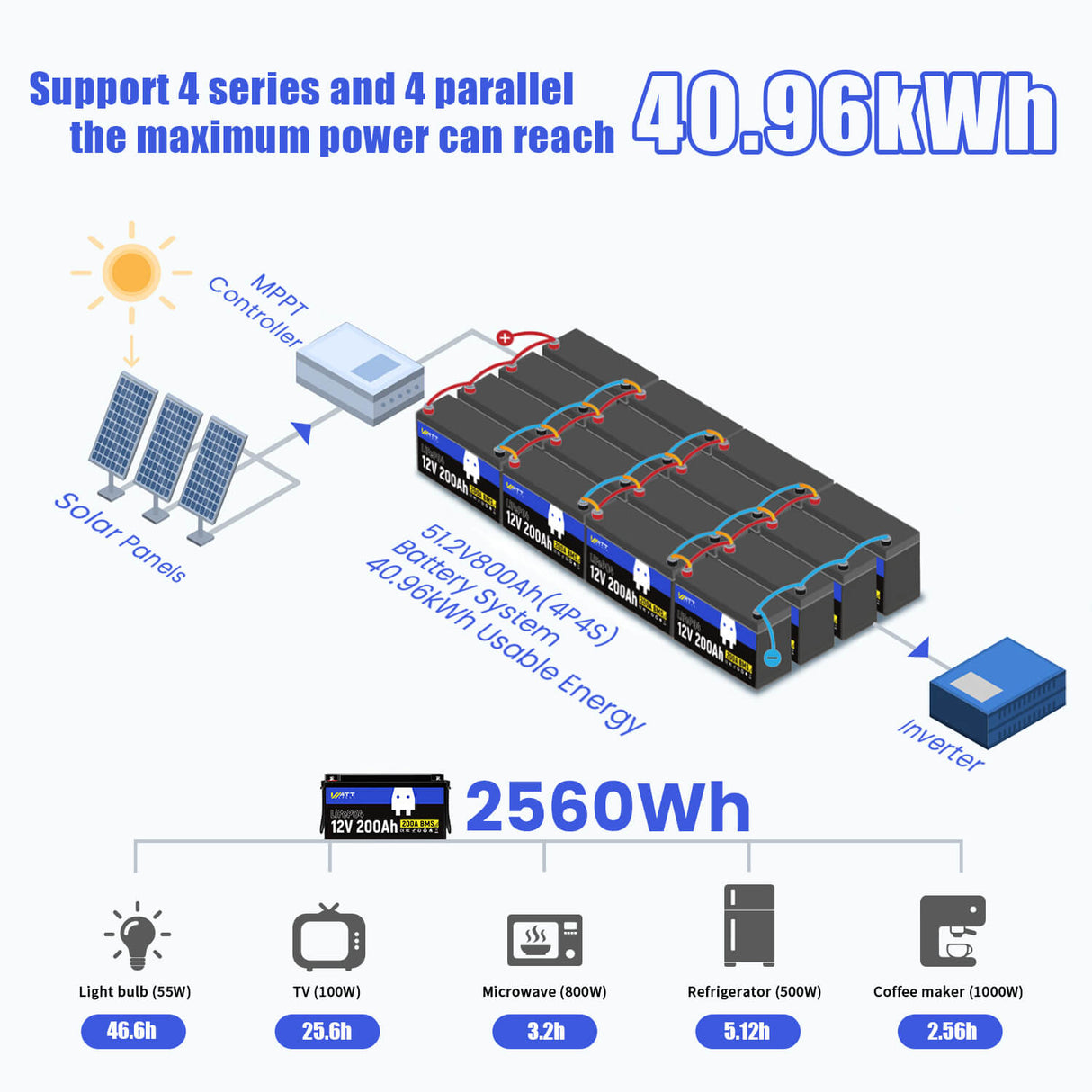

- Scalable: Expandable max 4S4P, up to 40.96kWh
- Waterproof: IP65
- Certification: SDS/UN38.3/FCC/CE/ROHS/UL
【🚀Limited Stock】WattCycle 12V 200Ah LiFePO4 Battery - 1 PACK is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Downloads
Downloads
Youtube Reviews
Youtube Reviews
Shipping
Shipping
Destinations:
- We only ship orders toContinental
- Currently we DO NOT ship to Alaska, Hawaii, and Puerto Rico.
Shipping Fee:
- FREE shipping on all orders
- Shipping method: UPS Ground
Shipping time:
The time frame of an order delivery is divided into two parts:
- Processing time: 1-2 business days
- Shipping time: 2-5 business days
- The shipping will delay for some objective or uncontrolled reasons. We will notice our customer ahead for delays.
Tracking Your Order:
- Once your order ships, you will receive a confirmation email with a tracking number. You can use this tracking number to track the progress of your shipment on the carrier's website.
Sign up to be the first to know when it's here
【🚀Limited Stock】WattCycle 12V 200Ah LiFePO4 Battery
Power Your Adventure Longer!
Stable & Reliable
Description
Description
- EV-Grade LiFePO4 Cells: Made from 100% safe, non-toxic, and eco-friendly energy, our batteries offer higher chemical stability, guaranteeing quality and safety.
- Long Life & Deep Discharge: This battery delivers 5,000 to 15,000 cycles with a 10-year lifespan, significantly outlasting lead-acid batteries by up to five times, while supporting 100% Depth of Discharge (DOD).
- Lightweight & High Capacity: Weighing only 45.20 lbs, this battery is just 1/3 the weight of lead-acid alternatives, with an energy density of 56.63Wh/lb. It's ideal for RVs, trolling motors, marine, and off-grid applications.
- High Energy Output: A single WattCycle 12V 200Ah battery offers the energy equivalent of two 12V 100Ah lithium batteries, providing 2.56kWh of energy. It supports up to a 4P4S connection, allowing you to build a 48V 800Ah battery bank with 38.4kWh energy for easier system setup and reliable backup power.
- Comprehensive Protection: The built-in 200A BMS ensures all-around protection against overcharge, over-discharge, over-current, high temperatures, and short circuits.
- Operating Temperature: Charging: 0°C~50°C; Discharging: -20°C~55°C.
- Fast Charging: For optimal performance, a 12V 20A dedicated lithium charger is recommended, which will fully charge the battery in 10 hours.
- Reliable Quality & Support:WattCycle batteries come with a 7-year free warranty and lifetime technical support. Our dedicated support team is available to assist with any questions or concerns, ensuring your satisfaction with our after-sales service.
Reviews (42)
Reviews (42)
Customer Reviews
I recently upgraded my mobility scooter's battery to the WattCycle 12V 200AH LiFePO4 battery, and it has been a game-changer. My old lead-acid battery was heavy, bulky, and offered limited range. This WattCycle battery is significantly lighter, which makes maneuvering my scooter much easier. But the real benefit is the incredible range. I can now travel much farther on a single charge, giving me the freedom to explore places I couldn't reach before. I no longer have to constantly worry about running out of power. The battery also charges quickly, which is a huge plus. The installation was straightforward, and the build quality of the battery seems excellent. It's a bit of an investment, but the improved performance, extended range, and peace of mind are well worth the price. Highly recommended for anyone looking to upgrade their mobility scooter's battery!
This battery is great so far. It is providing the power I need with power to spare. As I expand my capabilities I might add 1 more with an inverter.
I have 2 of the 200 Ah batteries plus and they are working great. I highly recommend
It was delivered a day early and packaged well. I fully charged it and hooked it up to my setpower pt55 just to see how long it will run it. So far 61 hours and counting. I can't compare it to anything but so fat 5 stars
We purchased a 400 volt battery a couple weeks before we got this one and then found out we need at least 600 volts. The first battery is great so we bought this battery from the seller. It is every bit as good as the first and we were able to just connect it to the first battery to give us our 600 AH that we needed.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
12V 200ah Deep Cycle Battery -Build your own energy system!

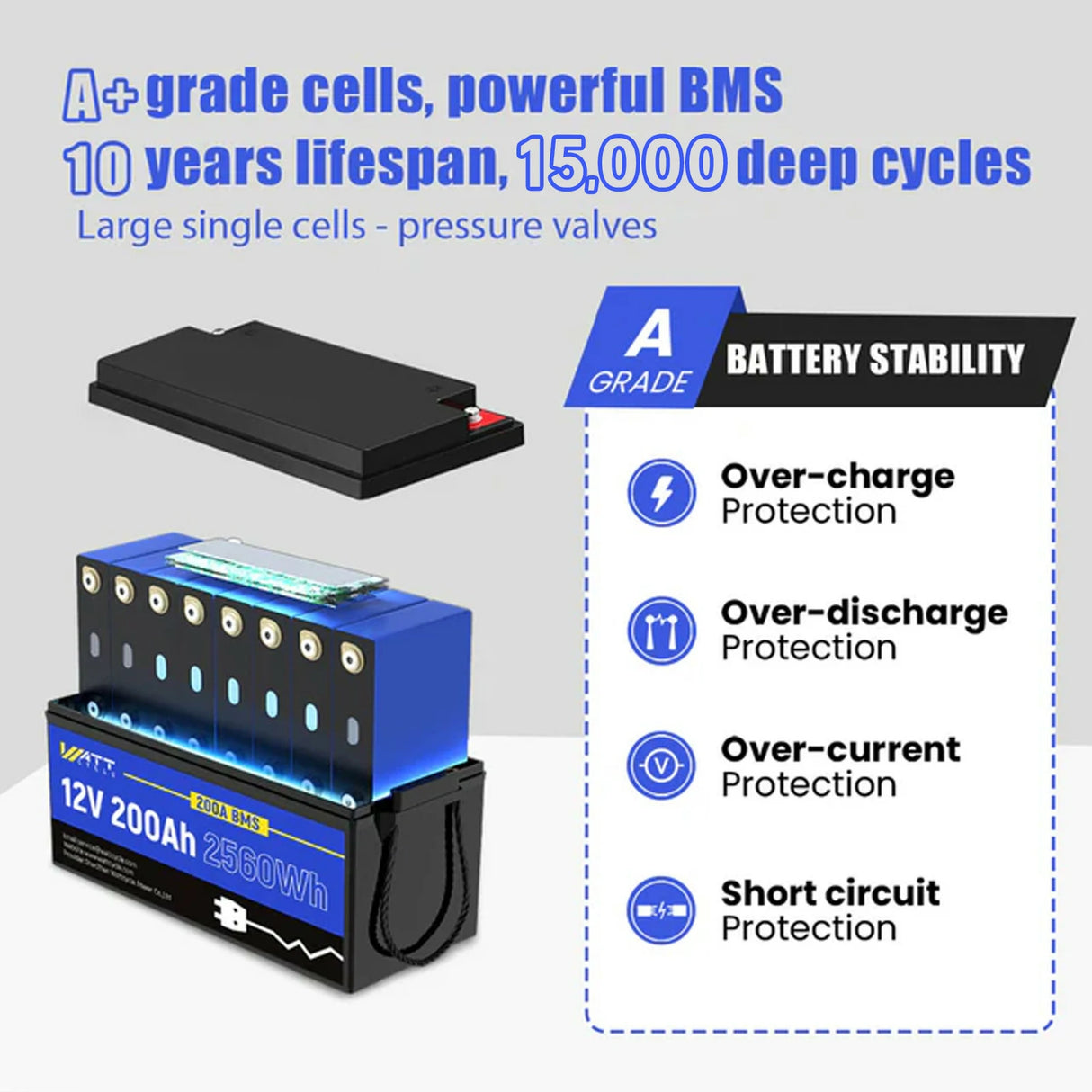

WattCycle Deep Cycle Battery: Grade A+ Power
- Brand New EVE Grade A+ Cells
- Superior Quality and Reliability
- Longer Lifespan
- High Energy Density
- Safety and Stability
- Consistent Performance
- High Performance in Extreme Conditions
- Environmental Friendliness
WattCycle Lithium Battery Safety: EV-Grade BMS Protection
- Max. Cont. Discharge Current: 200A
- Max. Cont. Charge Current: 200A
- Max. Discharge Current (5s)：300±50A
LiFePO4 Battery 12v 200AH in RV System

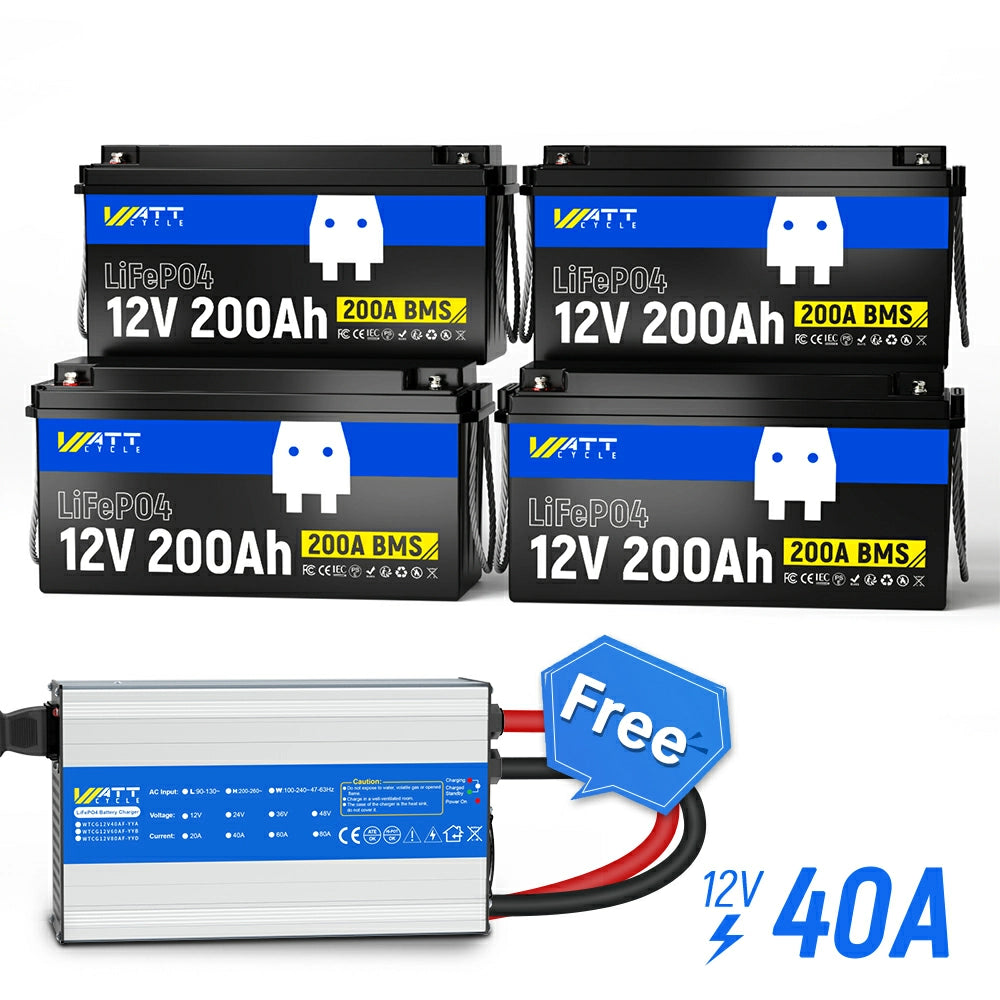

Connect in Series or Parallel
You can wire lifepo4 battery 12V 200AH Core Series Batteries in series to build a 24V, 36V, or even 48V system in your RV.
LiFePO4 Lithium Battery One-Stop Solution

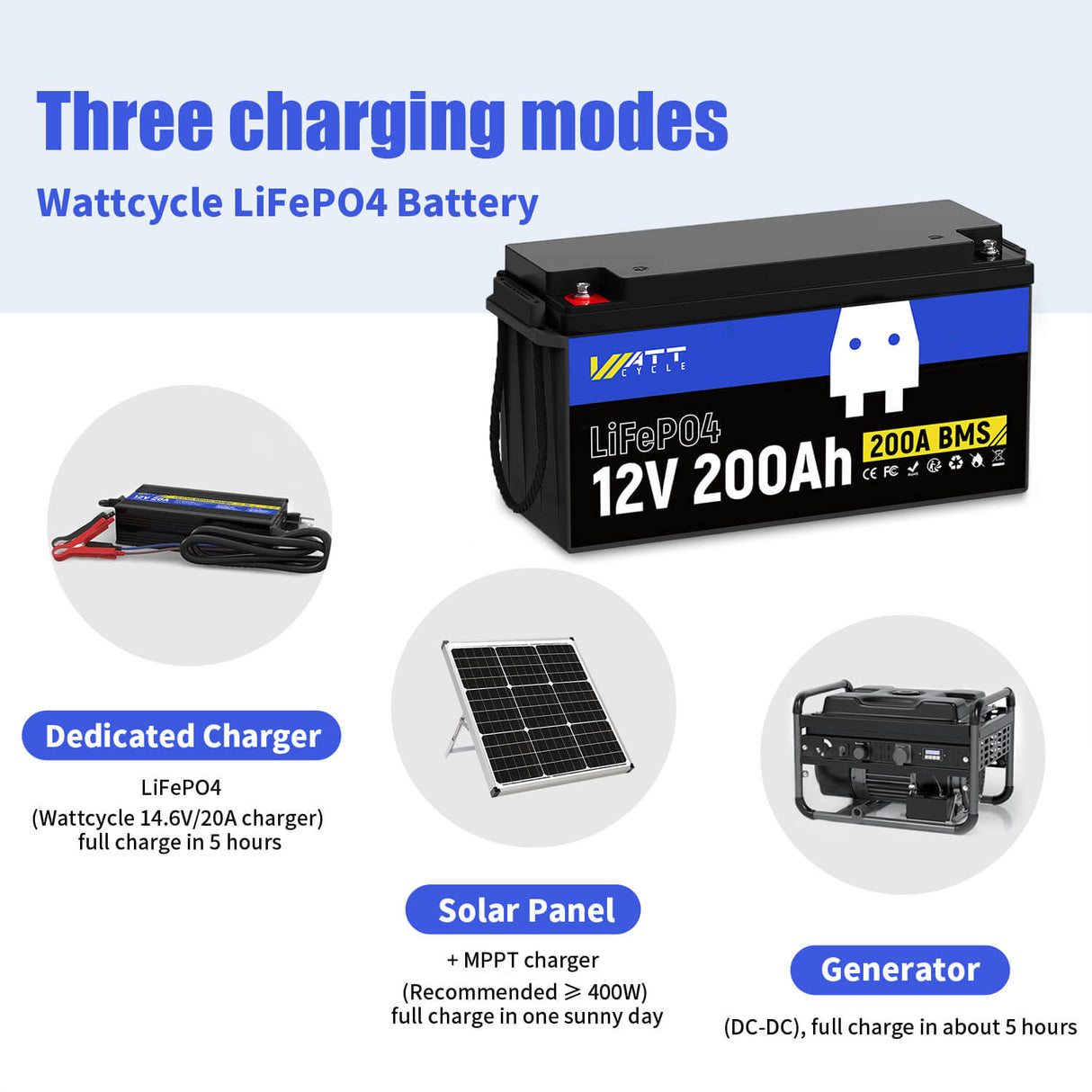

Choose the Charging Method That Suits You
-

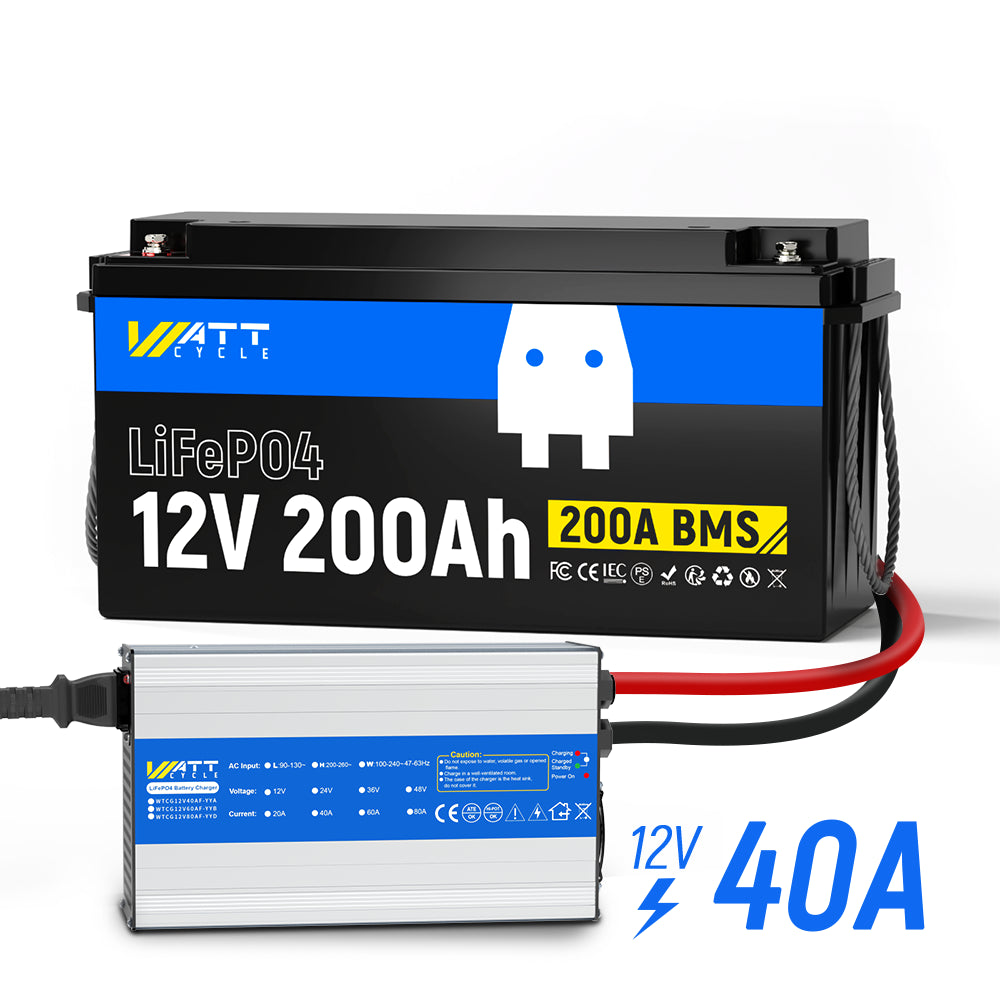

14.6V 20A Charger
1) 3 Charging Phase: I1, I2, I3
2) Recommended Charging Rate: 0.1C~5C
3) Full Charging: 10 hours (0.1C) -
Solar Energy Plate
1) Recommended Charging Current: 0.1C~0.5C
2) Recommended Charging Voltage: 14.4~14.6V -
Power Generator
1) Charging: DC to DC
2) Recommended Charger: 20A DC-DC Charger
3）Full Charging: 5 hours
Precautions for Usage
Tips for a better using experience and batteries' health.

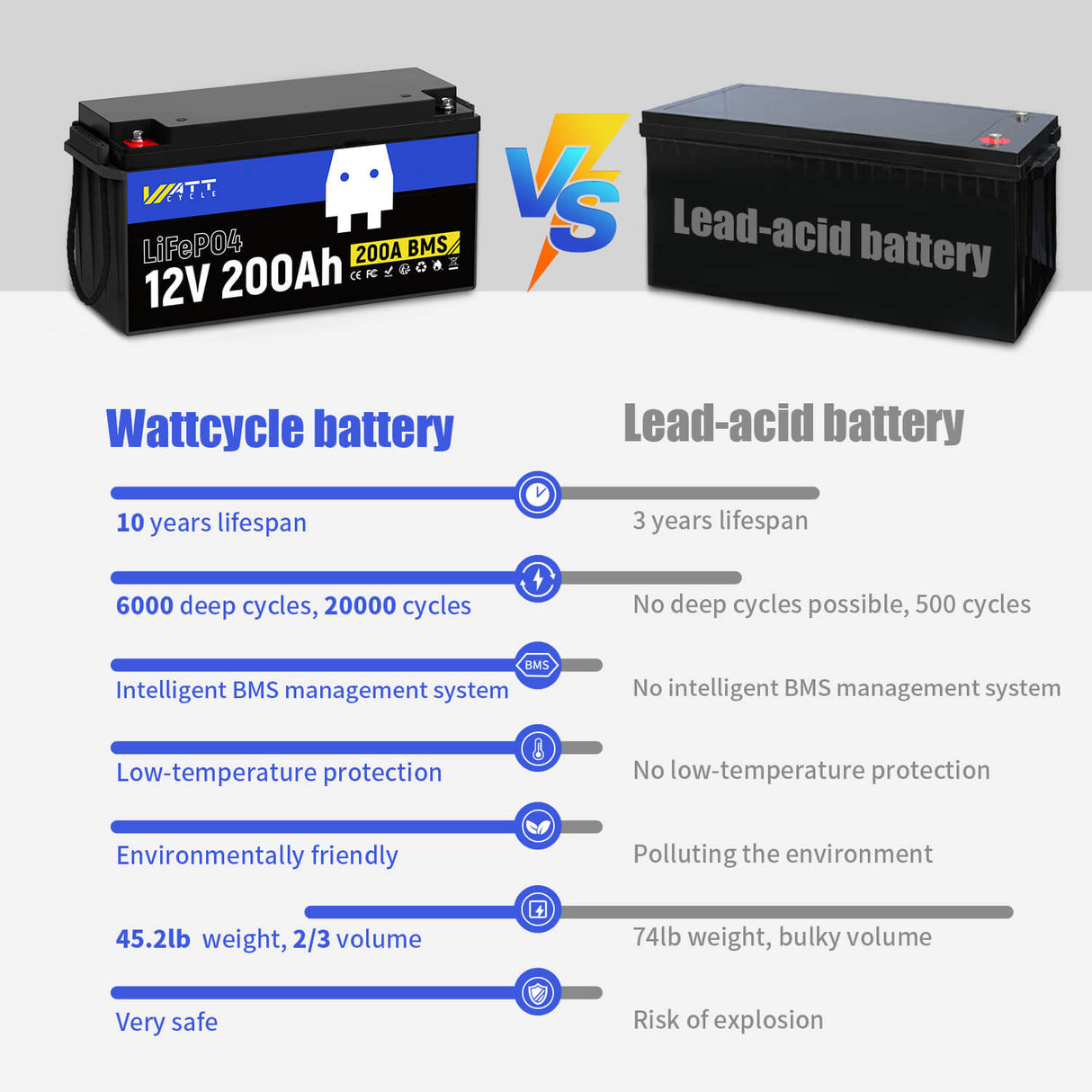

Upgrade to the LiFePO4 Battery 12V 200Ah
Your Trusted Solution for Transitioning from Lead-Acid to Advanced Lithium Technology
Tech Specs
GENERAL

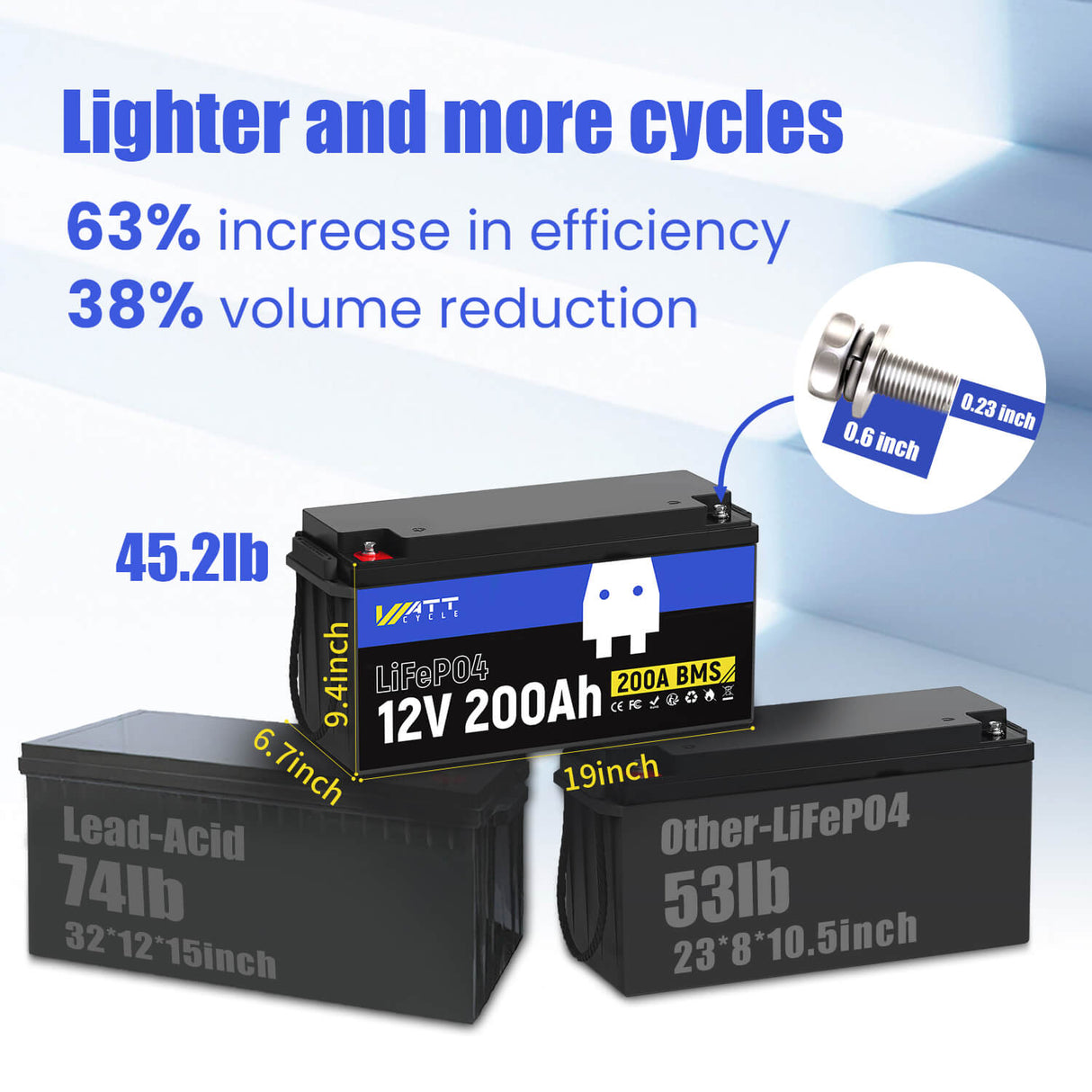

| Dimensions (Inches) | 21.0 (L) x 8.2 (W) x 8.5 (H) |
| Weight | 45.20lbs / 20.5kg |
| Waterproof Rating | IP65 |
| Warranty | 7 years |
| Housing Material | ABS (Flame Retardant Plastic) |
| Terminal | M8 bolts |
BATTERY
| Cell | Grade A+ LiFePO4 Cells |
| Nominal Voltage | 12.8V |
| Nominal/Usable Capability | 200Ah |
| Energy | 2560Wh |
| Cycle Life | 5,000 cycles @100% DOD, 6,000 cycles @80% DOD, 15,000 cycles @40% DOD |
| Max Depth of Discharge (DOD) | 100% |
| Max. Expansion | 4S4P |
| Certifications | SDS/UN38.3/FCC/CE/ROHS/UL |
| Internal Resistance | ≤40mΩ |
BMS
| BMS | 200A |
| Max. Continuous Output Power | 2560W |
| Max. Continuous Charge Current | 200A |
| Max. Continuous Discharge Current | 200A |
| Max. Discharge Current | 300±50A (≤5s) |
CHARGE
| Charge Voltage | 14.6V ± 0.2V |
| Charge Method | CC/CV |
| Recommend Charge Current | 40A (0.2C) |
| Charge Temperature | 0℃ to 50℃ / 32℉ to 131℉ |
| Discharge Temperature： | -20℃ to 55℃ / -4℉ to 131℉ |
| Storage Temperature | 0℃ to 55℃ / 32℉ to 131℉ |
| Low-Temperature Protection | Yes (32℉/0℃) |
| Low-Temperature Charging Protection Auto Recovery | Yes (41℉/5℃) |
